Flat Die Pellet Mill For Sale

Small Flat Die Pellet Machine for Organic Fertilizer and Feed

The flat die pellet mill has become the first choice for many farmers to process their manure due to its compact body and quick granulation. In addition, in the feed pelleting industry, flat die fertilizer granulators have also become the choice of many feed manufacturers. So, what makes our flat die extrusion granulator stand out from the crowd? The answer is that our flat die pellet machine has some special designs and materials, which make our flat die granulator have some advantages that other similar equipment cannot achieve. Compared with other granulators, such as disc granulator, rotary drum granulator, double roller extrusion granulator, etc., flat die pellet mill belongs to dry granulation. In addition, the flat die granulator is more suitable for small granulators for household use.

Flat Die Fertilizer granulator for Organic Fertilizer or Feed in SX Fertilizer Machine Supplier
Flat Die Fertilizer granulator for Organic Fertilizer or Feed in SX Fertilizer Machine Supplier

Flat Die Pellet Mill

Model: SXPM-125

Power: 3kw

Granule Diameter: 3-10mm

Capacity(kg/h): 60-100 (Feed) 100-200 (Fertilizer)

Dimension: 630* 27o*750mm

Feed Size: 3-5mm




How Do We Design The Structure of Flat Die Pellet Mill?

Feed Port

From the following picture we can see, the feed port of our granulator is on the left side of the control box. The whole is round, and the opening on the top is large, which is convenient for feeding. The material of the feeding port is stainless steel to prevent the material from corroding and sticking to the wall. The material enters the granulating device vertically for the next step of granulation.

Granulating Device

Flat die extrusion granulator belongs to dry extrusion granulation. It mainly consists of rollers and molds. The mold gap can be large or small. It can produce columnar particles with a diameter of 2-8 mm. The roller is an important part of the granulating part. Since some raw materials such as sawdust, straw, etc. require a lot of pressure for extrusion. So our rollers are made of special materials, which are pressure-resistant and wear-resistant. You can choose the different mold shapes according to your needs, generally cylindrical. You can also adjust the length of the columnar particles.

Discharge Port

The discharge port is below the granulation part and is square. There is a stainless steel tray connection outside, which is convenient for receiving materials.

Gear Box

The working principle of the flat die granulator is to drive the belt and pulley through the motor, transmit it to the driving shaft through the reducer, and open the gear and the driven shaft to work synchronously.

The Wheel

Our flat die pellet machine has four wheels for easy walking. Due to the great weight of the granulator, manual transport wastes time and energy. Given the convenience of use, we design the wheel for the flat die granulator.

Control Box

The flat die granulator uses a central pressure regulating structure. It can realize mass production by automatically controlling the control box. There is an observation window on the electric control box to facilitate the inspection and maintenance of the equipment.

The main technical parameters of flat die granulator:


Model Power(kw) Weight Capacity(kg/h) Dimension(mm) Feed Size(mm)
SXPM-125 3 92 60-100 (Feed) 100-200 (Fertilizer) 630* 27o*750 3-5
SXPM-150 4 180 90-120 (Feed) 200-400 (Fertilizer) 750*350*650 3-5
SXPM-200 7.5 250 200-300 (Feed) 300-500 (Fertilizer) 1220*980*470 3-5
SXPM-230 11 270 300-400 (Feed) 400-600 (Fertilizer) 1140*470*970 3-5
SXPM-260 15 300 400-600 (Feed) 600-800 (Fertilizer) 1120*520*1070 3-5
SXPM-300 18.5 400 600-800 (Feed) 800-1000 (Fertilizer) 1270*520*1070 3-5
SXPM-360 22 600 700-900 (Feed) 1200-1500 (Fertilizer) 1340*580*1060 3-5
SXPM-400 30 750 900-1100 (Feed) 1500-2000 (Fertilizer) 1350*600*1200 3-5
SXPM-500 37 900 1000-1500 (Feed) 2000-2300 (Fertilizer) 1550*750*1350 3-5
If you want to know more information about dry granulator, please email us!

How Does The Flat Die Pellet Mill Process The Fertilizer?

First of all, in the driving part, the main motor drives the belt and pulley, and drives the drive shaft to work through the reducer. The split gears installed on the driving shaft are engaged with the large gear ring fixed on the body to do opposite work. Second, you need to add the material from the feed port. The material enters the granulation part due to its own gravity. Then in the granulation process, the granules are formed by the extrusion of the pressing roller and the mold. Finally, it flows out through the discharge port. Due to the continuous entry of materials and the continuous rotation of the granulator, it can be achieve mass production.

In design, our flat die granulator uses two-stage transmission of belt and worm gear, which is stable in rotation and low in noise. Feeding relies on the material’s own gravity to fall to avoid clogging. The rotational speed of the main shaft is about 60 rpm, and the linear speed of the pressing roller is about 2.5 m/s. It can effectively remove the gas in the material and increase the tightness of the product. Due to the lower line speed, the noise generated during operation and the wear of components are reduced at the same time. The roller bearings are permanently lubricated and specially sealed. On the one hand, this design can prevent the lubricant from contaminating the material during the granulation process. On the other hand, it can reduce the loss of lubricant.

Some Details of the Flat Die Granulator For Our Special Design in Structure
Some Details of the Flat Die Granulator For Our Special Design in Structure


Working Principle Diagram of Flat Die Pellet Mill of SX
Working Principle Diagram of Flat Die Pellet Mill of SX


Components of Flat Die Granulator For Fertilizer or Feed Making
Components of Flat Die Granulator For Fertilizer or Feed Making


Why So Many Fertilizer Producer Use The SX Flat Die Extrusion Granulator?

Smooth Particle

The granular material processed by the flat die fertilizer granulator has a smooth surface and moderate hardness. The temperature rise is low during the processing, so the nutrients inside the raw materials can be better maintained reliable performance.

Low Moisture

One of the advantages of the flat die pellet mill is that the produced granules have low moisture content. Do not require drying and are easy to store. It can keep the original state for a long time in water, which greatly improves the utilization rate of materials.

Compact Structure

The overall frame of the equipment is channel steel, and the structure is practical. A variety of aperture molds are available to produce columnar particles of different diameters. The key components are alloy steel and wear-resistant materials, and the service life is long. The pressing roller uses the inclined wheel, and the two ends are the same as the inner and outer circles of the die plate. There is no dislocation friction between the rollers and the mold, which reduces the resistance and extends the service life of the mold.

Small Footprint

The flat die extrusion granulator has a maximum output of 2.5 t/h and is fitting for fertilizer granulation on small farms. Unlike a drum granulator, it takes up a lot of space. The flat die extrusion granulator is compact and convenient in structural design.



Small Flat Die Pellet Machine for Organic Fertilizer and Feed in SX Fertilizer Machine Manufacture
Small Flat Die Pellet Machine for Organic Fertilizer and Feed in SX Fertilizer Machine Manufacture

Flat Die Pellet Mill

Model: SXPM-200

Power: 7.5kw

Granule Diameter: 3-10mm

Capacity(kg/h): 200-300 (Feed) 300-500 (Fertilizer)

Dimension:1220*980*470mm

Feed Size: 3-5mm


How Can You Choose The Proper Flat Die Pellet Machine Producers?

Small Farm Household Flat Die Pellet Mill

The minimum production capacity of our flat die granulator is 1-1.5 t/h, if you have a small farm and it is not enough to build a complete fertilizer production line, the flat die granulator is the most suitable choice. On the one hand, it can meet your daily granulation of livestock manure. On the other hand, it does not require you to spend more money on related equipment. And our flat die granulator occupies less space and is flexible and convenient to use. It is the right assistant for handling the manure of your small farm.

Flat Die Fertilizer Granulator With Larger Throughput

Of course, if you think your farm is medium in size, then a flat die granulator with a capacity of 2-2.5 t/h is suitable. It can solve the manure problem of tens of thousands of poultry. In addition, the price of the flat die granulator is favorable compared to other granulators. Flat die granulators are affordable if you don’t have a lot of budget for the price of a granulator.

Organic Fertilizer Flat Die Granulator

Whether it is poultry manure or livestock manure, it is suitable for granulation by flat die granulator. Placing a flat die granulator at home can help you achieve granulation anytime, anywhere. It turns your manure into organic fertilizer pellets. You can apply it to the soil of your farm, garden, etc., to realize the circular development of agriculture. Of course, you can also use it to sell goods, which is a highly profitable way.

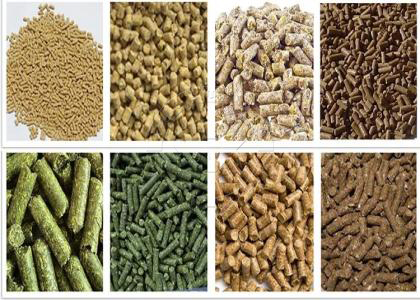

Columnar Granules of Different Materials From Our Flat Die Granulator in SX
Columnar Granules of Different Materials From Our Flat Die Granulator in SX


Which Raw Materials are Suitable for the Flat Die Granulator for Granulation?

Flat die pellet mill is mainly fitting for organic fertilizer granulation and feed granulation. You can granulate the fermented livestock manure, straw, sawdust, biogas residue, etc. by a flat die extrusion granulator. If you have a small farm, a flat die pelletizer is the best assistant for handling your farm waste. In addition, the flat die granulator is also suitable for granulation of feed. When you have a flat die pellet mill, you can not only make feed for your poultry, but also make organic fertilizer from your poultry manure. It achieves agricultural recycling.



How To Choose Right Model Of The Flat Die Pellet Mill?

We have three models of granulator for you to choose:

The model is SXPM-400, the output is 1-1.5 t/h, and the motor power is 30 kw

The model is SXPM-500, the output is 1.5-2 t/h, and the motor power is 37 kw

The model is SXPM-600, the output is 2-2.5 t/h, and the motor power is 45 kw

You can choose the flat die granulator that suits you according to the scale of your raw materials and farms.



Flat Die Pellet Mill in Small Scale Farms or Fertilizer Making at Home for Organic Fertilizer or Feed
Flat Die Pellet Mill in Small Scale Farms or Fertilizer Making at Home for Organic Fertilizer or Feed

Flat Die Pellet Mill

Model: SXPM-300

Power: 18.5kw

Granule Diameter: 3-10mm

Capacity(kg/h): 600-800 (Feed) 800-1000 (Fertilizer)

Dimension:1270*520*1070mm

Feed Size: 3-5mm




How To Adjust The Flat Die Granulator?

Adjustment of Roller Gap

During the production process, it is sometimes necessary to increase the output. At this time, you can increase the spacing between the two axes. you can also increase the spacing between the drive shaft roller and the driven shaft. The steps are as follows: stop the machine, remove the frame on the two bearing seats, and adjust the adjustment plate between the two bearing seats to the desired thickness. There should be no collision between the two rollers, at least between 0.3-1 mm.

 Ball and Socket Alignment

The adjustment ball socket is composed of dimples on the surface of the main roller, and there are problems of axial alignment and circumferential alignment.

Axial Alignment

Adjusted during installation. Generally speaking, adjustment is unlikely. When need adjustment, tighten or loosen the glands on both sides of the passive bearing seat to facilitate the displacement of the eccentric sleeve to correspond to the drive shaft roller.

Axial Alignment Steps

Loosen the 6 connecting bolts of the driven gear and the adjusting sleeve, and gently disassemble the adjusting sleeve and the driven gear. Since the design takes into account the adjustment of the ball and socket, and is equipped with two adjustment bolts, the misalignment can be adjusted no matter how much. Since the ball socket is too small, put the carton board between the two rollers when adjusting, and you can see whether the adjustment has achieved the goal after rolling. When correct, you can tighten 8 connecting bolts.

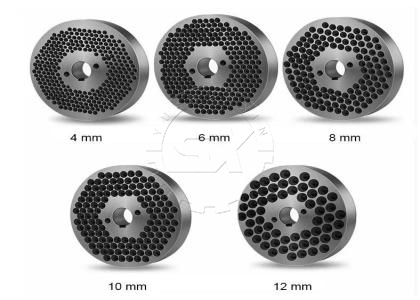

Ball Sockets of Different Diameters for Columnar Particles of Different Diameters
Ball Sockets of Different Diameters for Columnar Particles of Different Diameters

Ball Sockets of Flat Die Granulators of Different Diameters
Ball Sockets of Flat Die Granulators of Different Diameters

Parts of Ball Sockets and Press Rolls of Flat Die Pellet Mill in SX Machinery
Parts of Ball Sockets and Press Rolls of Flat Die Pellet Mill in SX Machinery


How to Maintain Your Flat Die Pellet Mill?

  • You should apply butter on the gears before starting.
  • You should butter the chain and sprocket every 7 days. Replace the butter with a new one every three months.
  • You should add gear oil before and after the reducer is in use, and change the gear oil every four months.

Things You Should Know When You Using Our Flat Die Pellet Mill

  • First, when installing, install the granulator smoothly. Adjust the tightness of the belt, check whether the steering is normal, and whether the screws in various parts are loose.
  • When using, you should note that there should be no hard objects such as stones and iron blocks in the raw materials, otherwise it will damage the pressing roller and the template.
  • After working for more than 10 shifts (8 hours per shift), the rollers should be disassembled. You should add the high temperature resistant oil to the bearings to prolong the service life of the bearings.
  • During granulation, it is strictly forbidden for the roller to idling contact with the template.
  • There is no granulation and no discharge during granulation, you should remove the template to clean the holes.
  • Frequently check the oil level and oil leakage of the gearbox. Change gear oil every 720 hours.
  • If there are more refined fibers, you should add about 5% of the water when you process the material. If there are more refined fibers in the mixed material, the amount of water added can be reduced as appropriate, and the water will be exerted during the extrusion process.
